Modern buildings require more than an attractive exterior—they need a façade system that protects the building, improves energy efficiency, and delivers long-term performance. One of the most important yet often overlooked elements of a ventilated façade is the air cavity.

What Is an Air Cavity?

An air cavity is the space between the exterior cladding and the building wall. It sits between the thermal insulation and the rainscreen panels, allowing air to circulate freely behind the façade.

This continuous airflow helps regulate temperature, remove moisture, and improve the overall performance of the building envelope.

How Does It Work?

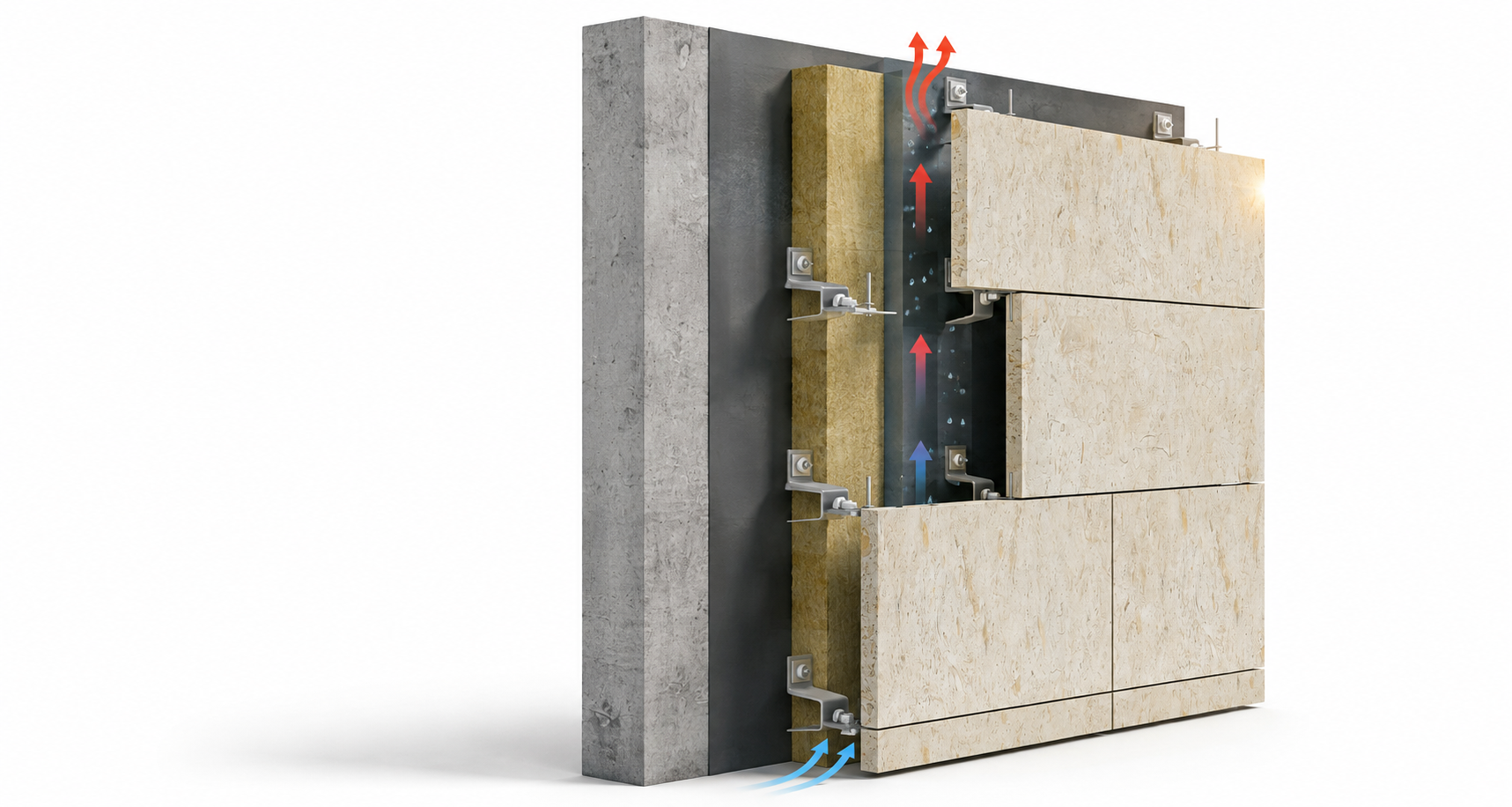

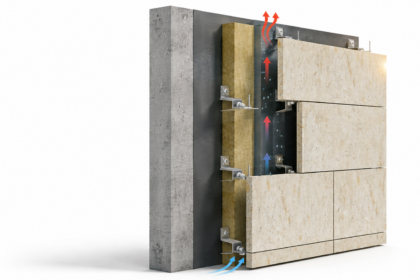

When sunlight heats the exterior cladding, the air inside the cavity warms up and naturally rises. Cooler air enters from the bottom, creating continuous ventilation behind the façade.

At the same time, any moisture or rainwater that enters through the panel joints can drain and dry quickly, helping keep the insulation and building structure protected.

Benefits of an Air Cavity

• Improves thermal performance and energy efficiency
• Reduces heat transfer into the building
• Prevents moisture buildup and condensation
• Protects thermal insulation from water damage
• Extends the lifespan of the façade system
• Improves indoor comfort
• Reduces long-term maintenance costs

Why Proper Design Matters

An effective air cavity is more than just a gap. It must be carefully engineered with the correct cavity depth, continuous airflow, proper drainage, and a reliable mechanical fixing system.

The façade support system should also be designed to withstand gravity, wind loads, thermal movement, and project-specific requirements to ensure long-term safety and performance.

The Complete Ventilated Façade System

A successful ventilated façade combines several components working together:

• Structural wall
• Waterproofing layer
• Thermal insulation
• Air cavity
• Mechanical fixing system
• Exterior cladding (rainscreen)

Each layer plays a vital role in protecting the building and improving its overall efficiency.

Conclusion

The air cavity is a key component of every ventilated façade system. By allowing continuous ventilation behind the cladding, it helps reduce heat, control moisture, and protect the building for decades.

At Technik Engineering Industries, our engineered mechanical fixing systems are designed to create safe, durable, and high-performance ventilated façades that meet the highest engineering standards while giving architects the freedom to create innovative building designs
