L-Bracket
The L-Bracket is often used as a complimentary item with Other systems to act as a restraining bracket.
It can be Fixed directly to the wall or at an offset using a long threaded rod.
This is a very useful feature when installing large corniche stones, inclined
Stones or as an additional restraining support.
Description
Features and applications
Primarily Used as a Restraint Bracket
✔️ Used in Combination with Vertical load bearing Support Systems.
✔️ Suitable Solution for Stacked Interior Marble and Granite Slabs Cladding
Additional information

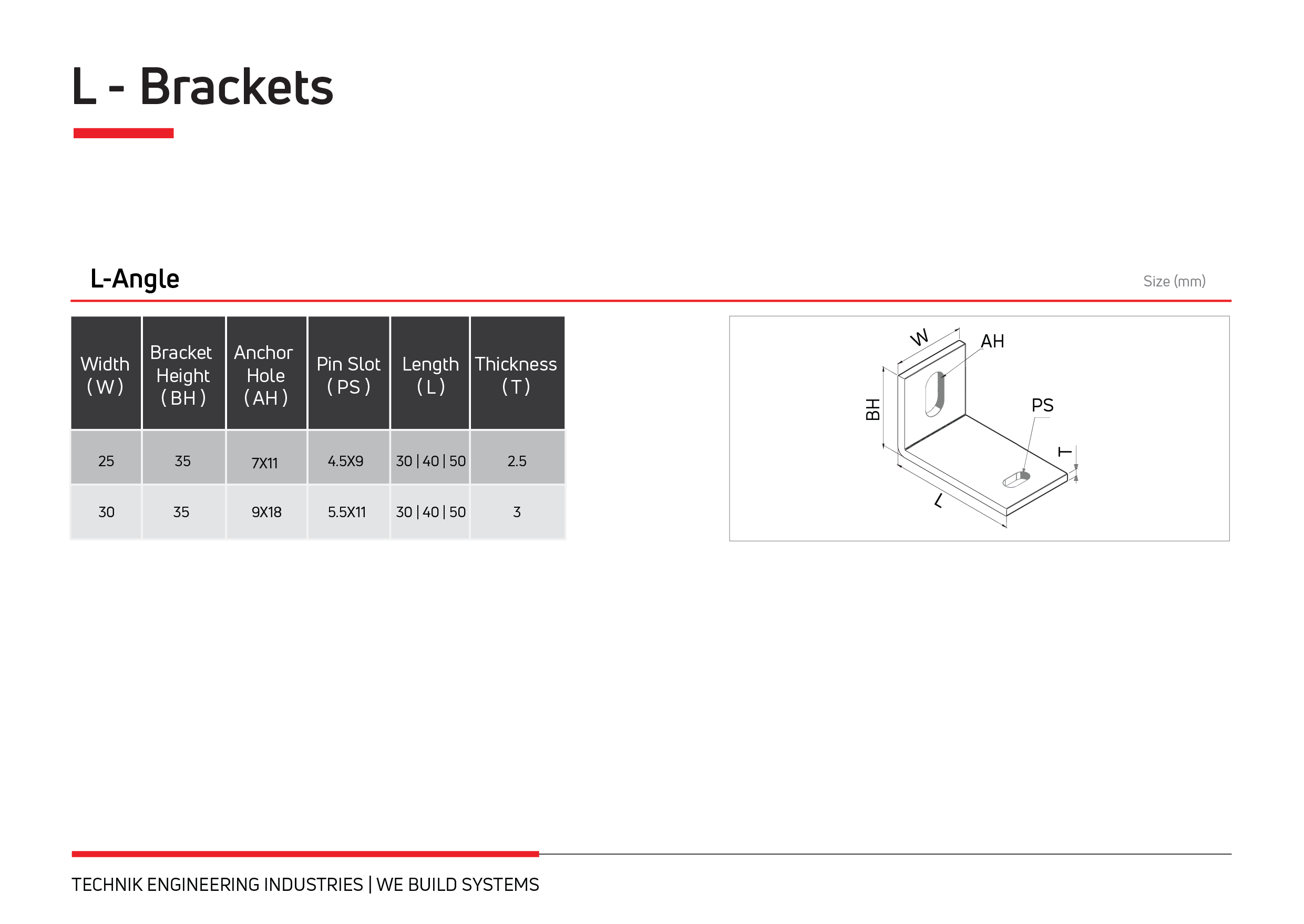

| W | 25, 30 |
|---|---|
| BH | 35, 35 |
| AH | 7X11, 9X18 |
| PS | 4.5X9, 5.5X11 |
| L | 30, 40, 50 |
| T | 2.5, 3 |
